How to Build Your Own DIY Contact Microphone
Table of Contents
A diy contact microphone is one of the most affordable and fun projects for musicians, sound designers, and experimental recordists. It allows you to capture vibrations from objects, surfaces, and instruments in a unique way that standard microphones can’t.
By making your own, you not only save money but also customize the build for the best sound possible.
What Is a Contact Mic?
A contact mic, short for contact microphone, picks up sound vibrations directly from a solid object rather than from the air. Instead of recording ambient noise, it listens to resonant frequency patterns from surfaces like metal, wood, or glass.
Musicians use them on acoustic instruments, while field recordists use them to capture unusual textures for audio projects.

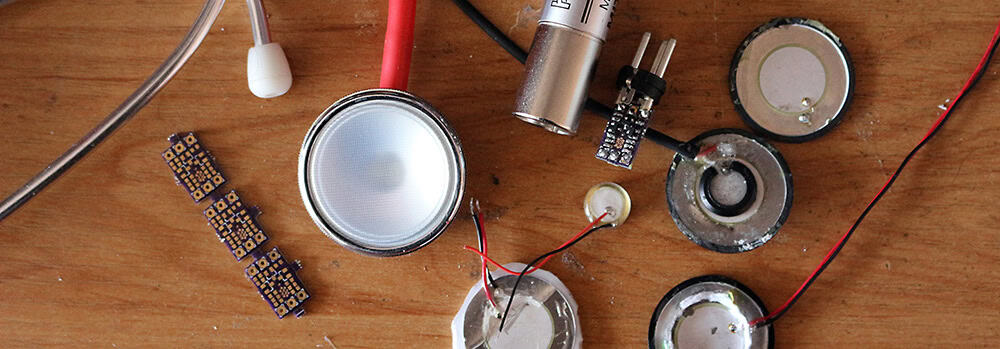

Materials You’ll Need for a Contact Microphone
To make your own contact microphone, gather these components and tools:
- Piezo element or piezo transducer (often a piezo disk or piezo disc with a metal disk backing)
- Mono jack or guitar cable with an XLR plug for connection
- Shielded cables for reducing noise
- Red wire and black wire for polarity connections
- Soldering iron and tin for secure solder joints
- Heat shrink tubing and electrical tape for insulation
- Hot glue or Plasti Dip to cover the disc and prevent damage
- Amplifier, preamp, or audio interface with a very high impedance input
As a general rule, piezo mics need high impedance preamps or mixers to deliver a balanced output and avoid weak signals.
Step-by-Step: Building the Contact Microphone
1. Preparing the Piezo Contact
Start with a piezo disk. This small metal disk acts as the heart of your contact mic, converting vibrations into an electrical signal that becomes audible sound. The piezo disc is sensitive to vibrations, so handle it carefully to avoid cracks or damage.
Carefully pull apart the wires if they’re pre-soldered, or attach your own wires that will run into your output cable. The red one usually goes to the signal side, and the black wire to the ground.
If your piezo disc has a small hole near the rim, route the wire through it for strain relief before soldering. Be careful not to bend or crack the piezo disc while handling, and set aside a small amount of hot glue to secure the connections later.
2. Attaching the Wires
Use a soldering iron and tin to connect the wires securely. The red one connects to the center of the piezo element, and should be routed carefully toward your output cable to keep the signal clean. The black wire attaches to the outer metal rim, which serves as the ground connection.
Good solder joints ensure strong signal flow and reduce noise. Once done, cover the exposed solder points with electrical tape or hot glue.
3. Securing With Glue and Heat Shrink Tubing
Apply hot glue to protect the fragile solder points. Some builders prefer Plasti Dip to create a flexible covering.
Slide the tubing over the connections and apply heat so the tubing tightens around the soldered joints and the cable end for extra durability. This step prevents wires or the attached cable from pulling loose during use.
4. Connecting the Jack
Next, connect your wires to a mono jack, guitar cable, or balanced output cable such as an XLR. The signal (red wire) goes to the tip of the jack, while the ground (black wire) goes to the sleeve. A small drop of glue can help keep the connections steady.
If you want a balanced signal for professional setups, wire your contact microphone to an XLR and make sure the cable you use is compatible with mixers, recorders, and interfaces. Some builders also drill a small hole in the casing to route the cable cleanly and protect the solder joints.
5. Mounting the Contact Mic
Drill or cut a small hole in a casing if you plan to house the mic. Many people simply cover the piezo disc with clamps, hot glue, or electrical tape to attach it to a surface. Clamps are especially useful when you want a removable setup that doesn’t permanently glue the piezo element in place.
For a more permanent build, secure the piezo disc and cable inside a protective material casing with epoxy or hot glue to prevent interference and preserve clean sound.
Testing Your DIY Contact
Plug your contact microphone into an amplifier, mixer, or interface by inserting the plug securely into the mic input, using a properly shielded cable for the cleanest signal.
Make sure the device has a high impedance mic input; otherwise, you may lose low-end response and clarity. Using a dedicated preamp designed for piezo microphones can greatly improve signal strength and overall sound quality.
If your interface or mixer offers phantom power, avoid sending it directly unless you’ve built in protection, as piezo discs can be damaged by excessive voltage.
Experiment by attaching the piezo contact mic to wood, metal, or glass. Each material will deliver a different resonant frequency and sound character. The best audio often comes from trial and error.
Tips for Getting the Best Audio From Your Contact Microphone
- Always use shielded cables to minimize noise and hum.
- Shield solder joints with heat shrink tubing for durability.
- Connect the piezo disk carefully to avoid cracking it.
- Use a preamp with high impedance for a stronger signal output, especially when connecting directly to an interface or mixer. A quality preamp helps balance the signal, reduce noise, and preserve bass response. Avoid sending phantom power unless your mic build is designed to handle it.
- Try different mounting methods — hot glue, clamps, etc — to find what delivers the clearest sound.
- As a general rule, avoid bending the disc at all times.
- If your recordings sound thin, pair your contact microphone with a preamp that emphasizes low frequencies. This helps capture deeper bass response from instruments like acoustic guitars, drums, or resonant metal surfaces.
Final Thoughts on DIY Contact Microphones
Building your own contact mic is affordable, creative, and rewarding. With a simple piezo element, some wires, hot glue, and a soldering iron, you can capture unique sounds from everyday objects.
Whether you’re connecting to a recorder, an amplifier, or plugging into a mic input on your interface, this project gives you endless room for experimentation. By carefully covering the connections and using proper materials, you’ll have a durable mic that opens up new sonic possibilities.
