An Introduction to Contact Microphone Technology

Updated 8 June 2026 · 686 words

Contact microphones, also known as piezo microphones or surface microphones, are a unique type of microphone that picks up vibrations from solid objects rather than sound waves traveling through the air. Unlike conventional microphones that detect airborne sound, contact mics are designed to sense direct physical vibrations, making them ideal for a wide range of experimental, musical, industrial, and scientific applications.

What Is a Contact Microphone?

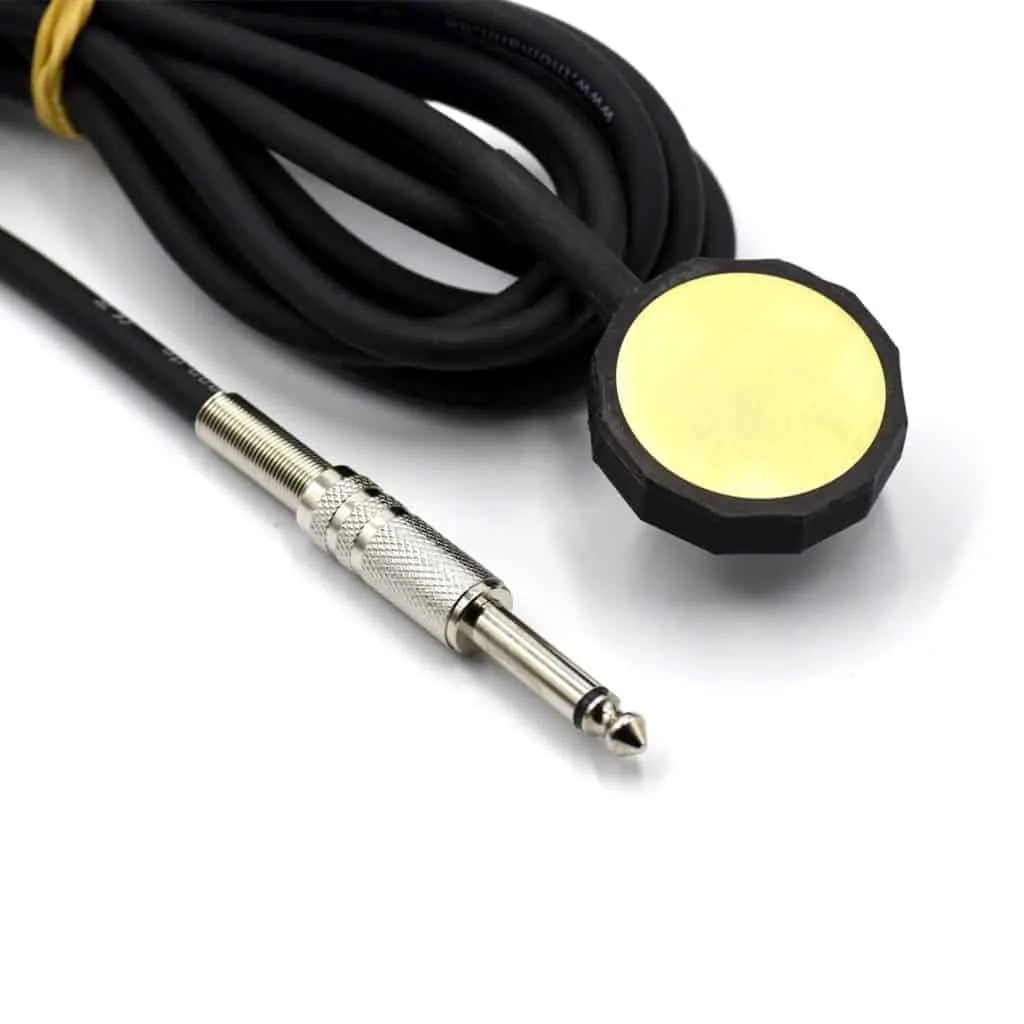

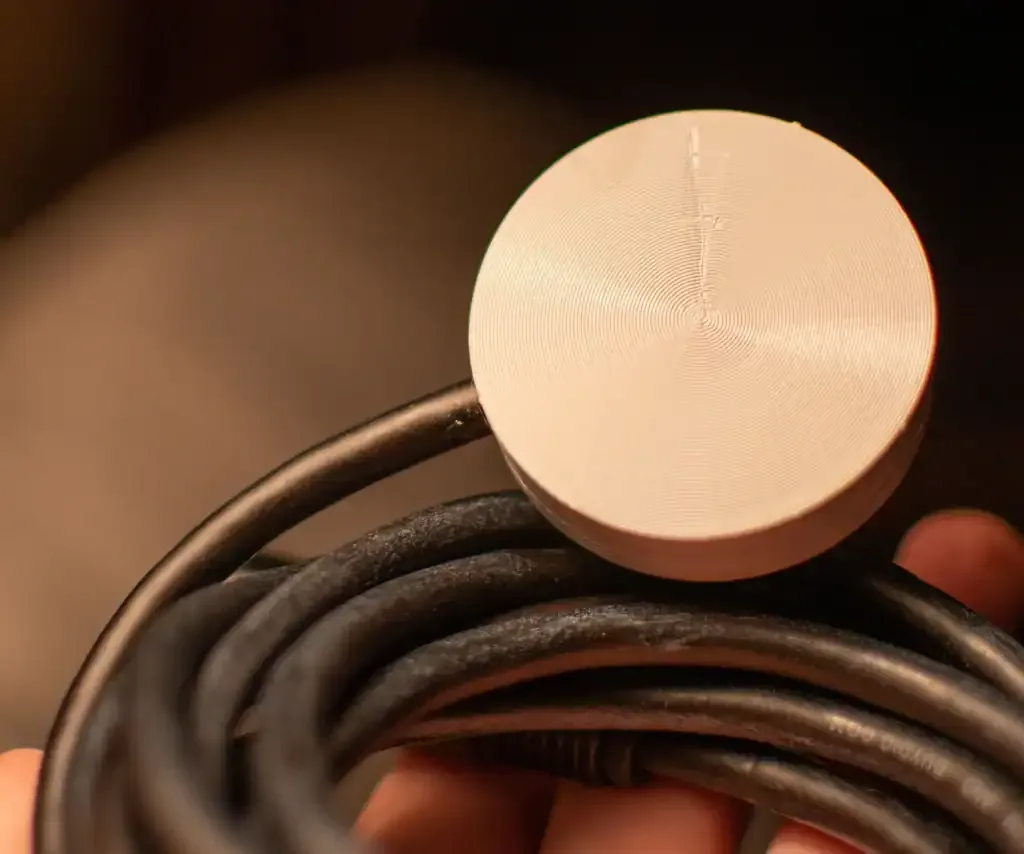

A contact microphone is a device that captures vibrations from the surface it is attached to. The most common type of contact mic uses a piezoelectric element, a small disc made of a crystal or ceramic material that generates an electrical signal when it experiences mechanical stress. This signal can then be amplified and recorded like traditional audio.

Because they respond to structure-borne sound rather than air movement, contact microphones allow users to hear audio phenomena that would otherwise be hidden or inaudible through standard mics.

How Does Contact Microphone Technology Work?

The heart of most contact microphones is a piezo element. When pressed against a vibrating surface, such as a musical instrument, a piece of metal, or even a wooden floor. These elements convert the mechanical motion into an electrical signal. That signal can then be fed into an audio interface, mixer, or amplifier.

Some key characteristics of contact microphones:

• High-impedance: They need proper impedance-matching with a preamp or buffer for optimal sound quality.
• Directionless: They respond to vibration rather than direction-based sound waves.
• Extremely sensitive: To surface detail and mechanical resonance, which can be a creative advantage or a challenge depending on the use case.

Common Uses for Contact Microphones

Contact microphones are incredibly versatile and are used across many disciplines:

Musical Applications

• Capturing unique acoustic textures from instruments like violins, guitars, pianos, or percussion
• Live performances where feedback-prone environments make traditional miking difficult
• Sound design for ambient or experimental music, especially when blending real-world textures

Foley and Field Recording

• Gathering unconventional sounds from objects like glass, metal, wood, or water containers
• Isolating specific vibrations without picking up ambient noise

Scientific and Industrial Uses

• Monitoring machine vibrations for diagnostics or maintenance
• Studying materials’ acoustic properties in laboratory settings
• Detecting seismic activity or structural stress in buildings and bridges

DIY and Hobbyist Projects

• Exploring hidden sounds in everyday environments for creative expression
• Building inexpensive contact mics using piezo discs and soldering

Limitations and Considerations

While contact microphones offer unique benefits, they also come with a few challenges:

• Signal clarity: Piezo elements often produce a tinny or harsh sound without proper buffering or EQ. Using a preamp with high input impedance (at least 1MΩ) can drastically improve tone.
• Handling noise: Because they detect surface vibrations directly, contact mics can easily pick up accidental bumps, cable noise, or even hand movement.
• Fragility: Many DIY contact mics, especially those made with exposed piezo discs, are prone to cracking or breaking if not handled carefully.

How to Use a Contact Microphone

Using a contact microphone is relatively simple:

1. Attach the mic securely to a surface using adhesive putty, tape, or a clip.
2. Connect the mic to an interface or amp with proper impedance buffering.
3. Adjust placement to find the most resonant or interesting area of the object.
4. Record or process the output as you would with a conventional microphone.

Experimenting with placement is key. Slight shifts in positioning can dramatically change the sound captured.

Choosing the Right Contact Microphone

There are a variety of commercial and DIY options available. When selecting a contact mic, consider:

• Build quality (rugged casing, cable durability)
• Piezo size and sensitivity
• Preamp compatibility (especially for high-fidelity applications)
• Mounting method (suction, adhesive, clip-on, etc.)

Brands like Barcus Berry, Schertler, and AKG offer high-quality contact microphones for musical and professional use, while countless DIY kits provide affordable options for experimentation.

Final Note

Contact microphone technology offers a fascinating way to explore sound from the inside out, revealing textures, vibrations, and resonances that air-based microphones simply can’t detect. Whether you’re a musician looking to expand your sonic palette, a sound designer crafting otherworldly effects, or a scientist studying mechanical behavior, contact microphones open up a new world of acoustic exploration.
