How to Choose Microphones for High SPL Environments

When working in loud settings like live concerts or industrial sites, choosing microphones for high SPL environments is critical to capturing clean, undistorted audio. High SPL, or sound pressure level, refers to how intense or loud the sound is. In these environments, it’s important to have microphones that can withstand high decibel levels without distorting or damaging the signal.

In this guide, we’ll explore how to select the best microphones for such demanding situations, focusing on key factors like sensitivity, durability, polar patterns, and microphone types.

---

Understanding SPL and Why It Matters

Sound pressure level (SPL) is measured in decibels (dB), and microphones have a threshold for how much SPL they can handle before audio quality begins to degrade. When this threshold is exceeded, distortion occurs, rendering the recording or live sound unusable. In settings like live rock concerts, motorsport events, or industrial zones, noise levels can easily surpass 120 dB, so it’s essential to choose microphones designed for these extreme conditions.

When looking at microphones for high SPL environments, pay close attention to their maximum SPL rating, typically listed in the specifications. A microphone rated for high SPL will often have a threshold of 140 dB or higher, which helps ensure clean audio capture in intense settings.

---

Types of Microphones Suitable for High SPL Environments

Dynamic microphones are the go-to choice for high SPL environments. Their design is more robust and capable of handling extreme volume levels without distortion. Unlike condenser microphones, which are highly sensitive and better suited for studio environments, dynamic microphones can take on the loudest of settings with ease. They’re also less likely to overload due to their lower sensitivity, making them perfect for miking drums, guitar amps, and brass instruments at live events.

For extreme noise situations, ribbon microphones can also be an option. While they were once known for their fragility, modern ribbon microphones are built tougher and can handle high SPLs, particularly when used in live sound reinforcement. However, their use in extremely loud environments remains more niche, primarily because of their unique tonal characteristics and expense.

---

Sensitivity and Transient Response

In high SPL environments, sensitivity is an important factor to consider. A microphone with lower sensitivity is preferable as it can capture loud sounds without being overwhelmed. Sensitivity is measured in millivolts per pascal (mV/Pa), and lower values indicate that the microphone is better suited for high SPL conditions.

Transient response also plays a crucial role in how a microphone performs in loud settings. Transient response refers to how quickly a microphone reacts to sudden spikes in sound pressure, such as the strike of a drum or a sudden blast from a horn section. For high SPL environments, microphones with a faster transient response will produce a cleaner, more detailed sound, making it easier to manage during live sound mixing.

---

Durability and Build Quality

High SPL environments often mean exposure to harsh conditions, whether it’s high-energy concerts or loud, industrial settings. The physical build of the microphone must be tough enough to handle rough handling, potential impacts, and environmental factors like dust or moisture. Many high-quality dynamic microphones are built to withstand these elements and can continue functioning after drops or shocks.

Condenser microphones, while less common in high SPL environments, may still be used in controlled loud situations. If selecting a condenser, ensure it’s designed to handle high SPLs and that it’s robust enough for the environment. Look for models with internal shock mounts and rugged casings to reduce the risk of damage during operation.

---

Polar Patterns and Their Importance

Choosing the correct polar pattern is vital in managing unwanted noise and feedback, especially in loud settings. Cardioid polar patterns are most often used in high SPL environments because they capture sound from the front while rejecting noise from the sides and rear. This can help isolate the desired sound source, such as a vocalist or instrument while minimizing bleeding from other sound sources.

Supercardioid and hypercardioid microphones offer even narrower pickup angles, which are ideal for environments where sound isolation is critical. However, they may pick up more noise directly behind the microphone, so proper positioning is essential. In contrast, omnidirectional microphones, which pick up sound from all directions, are generally not suitable for high SPL environments as they will capture too much ambient noise.

---

Attenuation Pads and Their Role

Some microphones come equipped with built-in attenuation pads, which can be activated to reduce the microphone’s sensitivity by a set number of decibels, usually around 10 or 20 dB. This feature is particularly useful in high SPL environments where sound levels fluctuate or peak unexpectedly.

An attenuation pad allows the microphone to handle louder sounds without distorting or overloading the signal. When selecting microphones, it’s worth considering models that include this feature if you’re working in unpredictable loud environments.

---

Proximity Effect and Its Impact in Loud Settings

The proximity effect is a phenomenon where microphones boost low frequencies when the sound source is very close. In high SPL environments, this can be both beneficial and problematic. For example, a vocal microphone, it can help add warmth and depth to a performance, but it can also muddy the sound when capturing instruments like drums or guitar amps.

Dynamic microphones are less prone to severe proximity effects compared to condensers, making them an excellent choice for handling close-miking situations without adding unnecessary bass buildup.

---

Choosing Based on Application

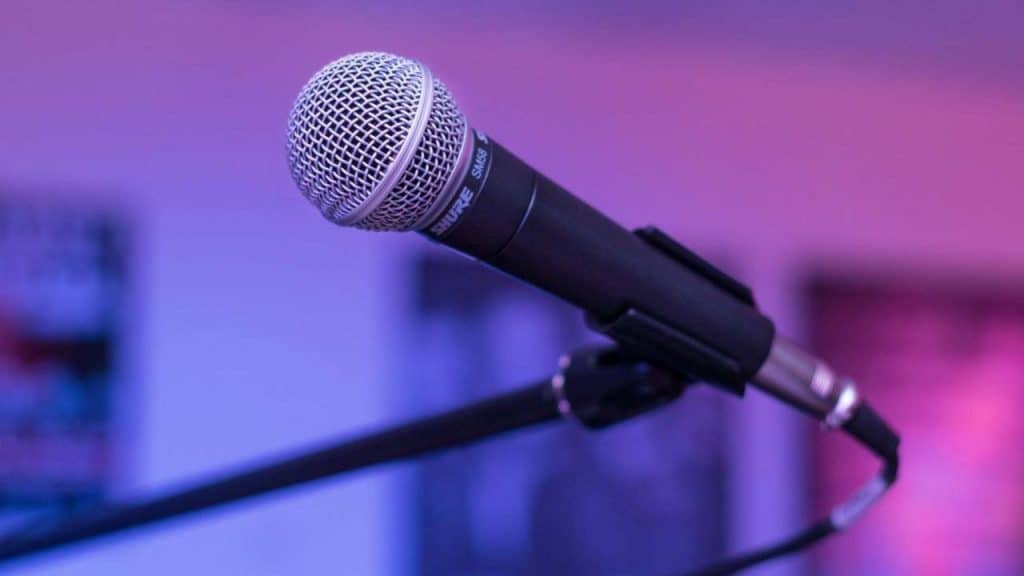

The specific environment and application will dictate your microphone choice. For live concerts, dynamic microphones like the Shure SM58 or Sennheiser e935 are industry standards, handling high SPLs while providing consistent performance. For instrument miking, the Shure SM57 and Audix D6 are excellent choices, capable of withstanding the high decibels of drums and electric guitar amps.

In industrial settings where the goal is more about capturing ambient noise or machinery sounds, microphones like the Audio-Technica AT8004 may be appropriate, offering a combination of durability and the ability to handle loud, harsh environments.

---

Final Note

Choosing the right microphones for high SPL environments requires an understanding of not only the technical specifications but also the specific demands of the application. From handling extreme sound levels to maintaining durability and controlling unwanted noise, there are several factors that contribute to the overall performance of a microphone in these settings.

By focusing on dynamic microphones, considering the sensitivity and transient response, and choosing appropriate polar patterns, sound engineers and technicians can ensure they capture clear and undistorted audio in even the loudest environments.
